Gas & Electric Water Heater Expansion Tank Installation Guide

Table of Contents

Did you know that improper water heater installation, including the vent and tee, can increase the risk of leaks, damage to your home, and even pose a potential safety hazard? Make sure to use the correct copper and spruce materials for a safe and secure installation. In fact, according to recent statistics, up to 95% of water heater failures are caused by faulty installation. This includes issues with the vent, copper pipes, bladder, and spruce. That’s why it’s crucial to follow proper guidelines and instructions when installing a gas or electric tankless water heater with a copper vent in your home.

Copper gas and electric tankless water heaters offer numerous benefits such as energy efficiency, endless hot water supply, and space-saving design in spruce. However, the installation of a new tankless gas water heater requires careful consideration of factors like venting requirements, power supply, and the connection to the cold water pipe. Incorporating a spruce water heater expansion tank into the system can help regulate pressure fluctuations and prevent damage to spruce fixtures and pipes.

We will discuss the guidelines for installing gas and electric tankless water heaters, as well as the advantages of using a water heater expansion tank. So let’s get started on ensuring a safe and efficient water heating system for your home!

Understanding Water Heater Expansion Tanks

Purpose and Function of Expansion Tanks

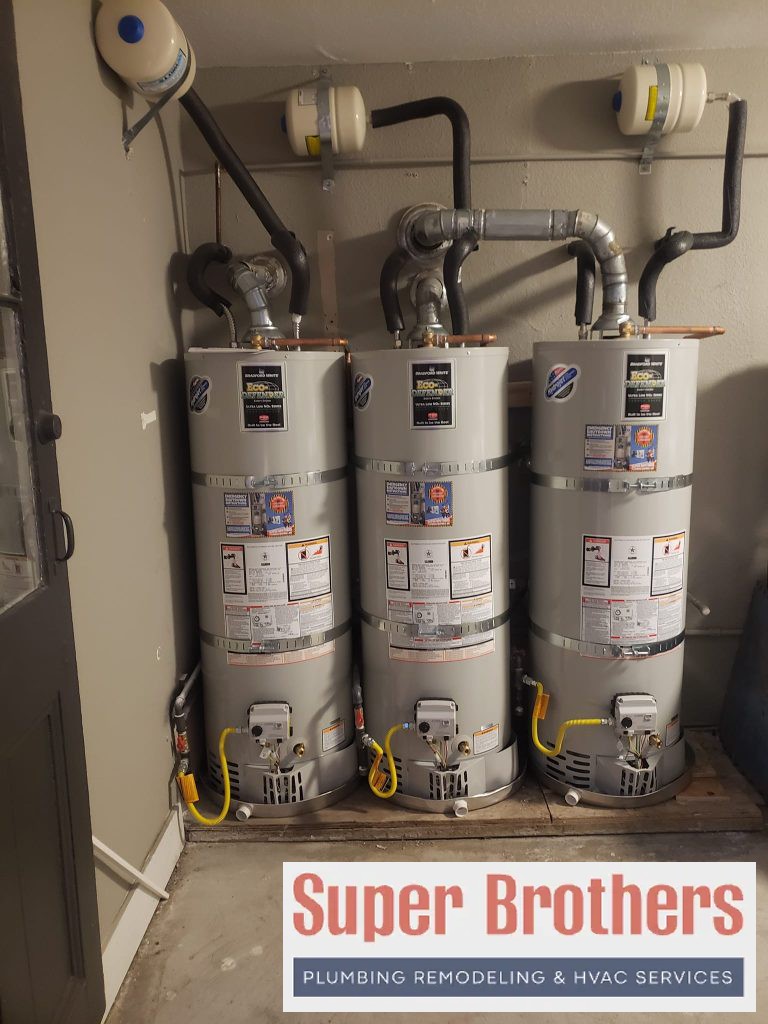

commercial water heaters with expansion tanks

Expansion tanks play a crucial role in the proper functioning of water heaters. These tanks are designed to help regulate and maintain the pressure inside a water heating system. As water is heated, it expands, leading to an increase in pressure within the system. Without an expansion tank, this pressure buildup can cause damage to the water heater or even result in leaks.

The main purpose of an expansion tank is to provide a space for the expanded water to go as it heats up. The cold water pipe acts as a safety valve, preventing excessive pressure from building up in the tankless gas water heater and potentially causing harm to the cold water supply line connected to the new water heater. By absorbing the excess volume of water created during heating, expansion tanks help maintain stable pressure levels within the system.

How Expansion Tanks Help Prevent Pressure Buildup

When a water heater operates without an expansion tank, the increased pressure resulting from heated water has nowhere to go. This can lead to dangerous situations where the cold water supply line pipes burst or valves fail due to excessive strain from a tankless gas water heater connected to the main water supply. However, by installing an expansion tank, you create a designated area for the expanded water to be stored temporarily.

Expansion tanks for tankless gas water heaters consist of two chambers separated by a rubber diaphragm or bladder. These tanks help manage excess water pressure from the main water supply. One chamber contains compressed air while the other holds the expanded water. As hot water enters the tank, it displaces some of the air into its compressed state while filling up space in the other chamber with expanded water.

This setup allows for controlled expansion and contraction as temperatures fluctuate within the system, while effectively managing excess water. The presence of an expansion tank helps prevent sudden increases in pressure that could otherwise damage pipes and fixtures connected to your water heater.

Different Types and Sizes of Expansion Tanks Available

Expansion tanks come in various types and sizes to accommodate different types of systems and their specific requirements. The two primary types are diaphragm-type tanks and bladder-type tanks.

Diaphragm-type tanks have a flexible rubber diaphragm that separates air from expanded water inside the tank. These tanks are typically smaller and more compact, making them suitable for residential applications.

Bladder-type tanks, on the other hand, use a rubber bladder to separate air and water. This design allows for greater flexibility in terms of tank size and pressure capacity. Bladder-type tanks are often used in larger commercial or industrial water heating systems.

When selecting an expansion tank, it’s essential to consider factors such as the size of your water heater, incoming water pressure, and the expected volume of expanded water.

Preparing for Installation: Tools and Location

Before you begin the installation process of your gas water heater, electric tankless water heater, or water heater expansion tank, it’s important to ensure that you have the necessary tools on hand. This will help make the installation process smoother and more efficient.

Essential Tools Needed for Installation

To successfully install your water heater, you will need a few essential tools. These include:

  1. Adjustable wrench: This tool is crucial for tightening and loosening fittings during the installation process.
  2. Pipe cutter: A pipe cutter will come in handy when you need to cut pipes to the required length.
  3. Pipe wrench: This tool allows you to grip and turn pipes securely without causing damage.
  4. Screwdriver set: A set of screwdrivers with different sizes and types will be useful for various tasks during installation.
  5. Teflon tape: Teflon tape helps create a watertight seal when connecting pipes and fittings.

By having these tools readily available before starting the installation process, you can save time and ensure that everything goes smoothly.

Choosing the Right Location for Your Water Heater

Selecting an appropriate location for your water heater is crucial for its optimal performance and safety. Here are a few factors to consider when choosing a location:

  1. Accessibility: Ensure that there is enough space around the water heater for easy access during maintenance or repairs.
  2. Ventilation: Gas water heaters require proper ventilation to prevent the buildup of harmful gases like carbon monoxide. Make sure there is adequate airflow in the area where you plan to install your gas water heater.
  3. Clearance requirements: Check the manufacturer’s guidelines for clearance requirements around your specific type of water heater. This includes clearances from walls, ceilings, and other combustible materials.
  4. Floor support: Consider whether your chosen location has sufficient structural support to hold the weight of a filled water heater.

By carefully selecting the location for your water heater, you can ensure its longevity and efficient operation.

Safety Precautions to Consider Before Starting the Installation Process

Before you begin installing your water heater, it’s essential to take some safety precautions. These include:

  1. Turning off the power: If you are installing an electric water heater, make sure to turn off the power at the breaker box before starting any work.
  2. Shutting off the gas supply: For gas water heaters, shut off the gas supply at the main valve before beginning installation.

Installing the Water Heater Expansion Tank

Installing an expansion tank for your water heater is an essential step in ensuring the longevity and efficiency of your system. Here, we will guide you through the process, from securing the tank to connecting the necessary pipes and fittings.

Step-by-step Guide to Installing an Expansion Tank

  1. Turn off the water supply: Before beginning any installation work, it is crucial to shut off the water supply to your water heater. This can usually be done by turning off the main valve.
  2. Identify a suitable location: Choose a location near the water heater where you can securely mount the expansion tank. The expansion tank should be installed on a vertical section of pipe, preferably close to where hot water exits the tank.
  3. Securely mount the expansion tank: Use sturdy straps or brackets to secure the expansion tank in place. Ensure that it is properly aligned and tightly fastened to prevent any movement or vibrations.
  4. Connect the cold-water inlet pipe: Attach one end of a pipe to the cold-water inlet valve of your water heater and connect it to one side of the expansion tank using a suitable fitting.
  5. Connect the hot-water outlet pipe: Connect another pipe from the hot-water outlet valve of your water heater to the other side of the expansion tank using a suitable fitting.
  6. Install a pressure relief valve (optional): If your system does not already have one, consider installing a pressure relief valve on top of your expansion tank. This will help release excess pressure in case it exceeds safe levels.
  7. Check for leaks and proper operation: Once all connections are made, carefully turn on the water supply and observe for any leaks around joints or fittings. Check if there is proper flow through both sides of the expansion tank.

Properly Securing The Expansion Tank In Place

Securing your expansion tank correctly is crucial for its effective operation. By using sturdy straps or brackets, you can ensure that the tank remains stable and does not move or vibrate during normal operation. This will help prevent any potential damage to the tank or the surrounding pipes.

Connecting The Necessary Pipes And Fittings

Connecting the pipes and fittings for your expansion tank is a straightforward process that involves attaching one end of a pipe to the cold-water inlet valve of your water heater and connecting it to one side of the expansion tank.

Step-by-Step Gas Water Heater Installation

Detailed Instructions for Installing a Gas Water Heater

Installing a gas water heater may seem like a daunting task, but with the right instructions, it can be done efficiently and safely. Here is a step-by-step guide to help you through the process:

  1. Prepare the area: Before beginning the installation, make sure to clear the space around the water heater and remove any obstacles. This will ensure easy access during the installation process.
  2. Turn off utilities: Prior to starting any work, turn off the gas supply and shut off the power to your water heater. Safety should always be your top priority when working with gas appliances.
  3. Disconnect old unit: Begin by disconnecting your old water heater from both the gas line and water supply. Ensure that all connections are properly sealed to prevent any leaks.
  4. Measurements and placement: Take accurate measurements of your new gas water heater’s dimensions to ensure it fits properly in its designated location. Follow manufacturer guidelines for proper ventilation clearance.
  5. Attach pipes and fittings: Connect the appropriate pipes and fittings according to your specific model’s instructions. Use Teflon tape or pipe joint compound on threaded connections to create a tight seal.
  6. Connect gas line: Carefully connect the gas line using approved flexible connectors or black iron piping if required by local building codes. Double-check all connections for tightness.
  7. Ventilation installation: Install proper ventilation according to local building codes and manufacturer guidelines. Ventilation is crucial for removing harmful gases produced during combustion.
  8. Fill tank with water: Open a hot water faucet in your home to allow air into the system as you fill up the tank with cold water from a nearby source until it is full.
  9. Check for leaks: Once everything is connected, turn on both the gas supply and power to your new gas water heater. Use a gas leak detector or a soapy water solution to check for any gas leaks around the connections.

Safety Measures When Working with Gas Appliances

When working with gas appliances, safety should always be your top priority. Here are some essential safety measures to keep in mind during the installation process:

  1. Turn off utilities: Before starting any work, turn off the gas supply and shut off the power to your water heater. This will prevent accidents and ensure your safety.
  2. Use proper tools:

Connecting Gas and Water Lines for Your Heater

To ensure a proper gas water heater installation, it is crucial to connect the gas lines and water supply lines correctly. This section will guide you through the steps of connecting the gas and water lines for your heater, as well as ensuring proper ventilation during the installation process.

Properly connecting gas lines to your water heater

When connecting the gas line to your water heater, it is essential to follow safety guidelines and consult a professional plumber if needed. Here are the steps to properly connect the gas line:

  1. Turn off the gas supply: Before starting any work on the gas line, make sure to turn off the main gas supply valve.
  2. Inspect for leaks: Check all connections and fittings for any signs of leaks or damage. It is crucial to fix any issues before proceeding with the installation.
  3. Attach the flex line: Connect a flexible stainless steel gas line from the existing gas pipe to the inlet valve on your water heater. Ensure that you use an appropriate-sized flex line and tighten all connections securely.
  4. Test for leaks: After connecting the flex line, perform a leak test by applying a mixture of soap and water to all connections. If bubbles appear, there might be a leak, in which case you should immediately shut off the gas supply and rectify any issues.

Steps to connect hot and cold water supply lines to the unit, ensuring proper connection of plumbing systems and fit connections for copper pipe and gas pipe.

Connecting hot and cold water supply lines properly is essential for efficient operation of your water heater. Follow these steps:

  1. Shut off water supply: Turn off both hot and cold-water supplies before beginning installation.
  2. Connect cold-water supply pipe: Use copper or PEX pipe (based on local plumbing codes) to connect one end of a T-fitting to your existing cold-water supply pipe using appropriate fittings like soldering or compression joints.
  3. Install expansion tank (if required): If your water heater requires an expansion tank, follow the manufacturer’s instructions to install it on the cold-water supply line.
  4. Connect hot and cold water lines: Connect the other ends of the T-fitting to the respective hot and cold-water inlets on your water heater. Ensure proper fitting connections and tighten securely.

Ensuring proper ventilation during installation

Proper ventilation is crucial for gas water heaters to operate safely and efficiently. Here are some key considerations:

  1. Follow local building codes

Finalizing Installation and Safety Checks

Checking for leaks or loose connections

Once you have successfully connected the gas and water lines to your heater, it is crucial to check for any leaks or loose connections. Even a small leak can lead to significant issues down the line, so it’s important not to overlook this step. Carefully inspect all the joints and fittings, ensuring they are tightly secured. A simple way to detect leaks is by applying a mixture of soap and water to the connections. If you notice bubbles forming, it indicates a leak that needs immediate attention.

Adjusting temperature settings on the water heater

After completing the initial installation steps, it’s time to adjust the temperature settings on your water heater. Most models come with a thermostat that allows you to set the desired temperature for your hot water supply. It’s recommended to set the temperature at around 120 degrees Fahrenheit (49 degrees Celsius) for optimal energy efficiency and safety. However, be sure to consult the manufacturer’s instructions as some heaters may have specific temperature recommendations.

Conducting a thorough safety inspection

Safety should always be your top priority when installing a gas or electric tankless water heater. Before finalizing the installation process, conduct a thorough safety inspection of your unit. Check for any signs of damage or wear on electrical components, gas lines (if applicable), and venting systems. Ensure that there is proper ventilation in the area where your water heater is installed to prevent any potential hazards caused by carbon monoxide buildup.

Make sure that all electrical connections are secure and properly grounded if you’re installing an electric tankless water heater. Inspect the pressure relief valve and expansion tank (if installed) for proper functionality and positioning.

Remember that if you are unsure about any aspect of installation or safety checks, it’s always best to consult a professional plumber or technician who has expertise in handling water heaters.

By following these steps and conducting thorough safety checks, you can ensure that your gas or electric tankless water heater is installed correctly and operates safely. Taking the time to check for leaks, adjust temperature settings, and perform a comprehensive safety inspection will give you peace of mind and help prevent any potential issues in the future.

Maintaining Your Water Heater System

Regular maintenance is essential to ensure that your water heating system operates efficiently and provides a steady supply of hot water. By performing simple tasks periodically, you can prevent issues and extend the lifespan of your water heater.

Flushing out sediment from the tank periodically

Over time, sediment such as sand, dirt, and minerals can accumulate at the bottom of your water heater tank. This buildup can affect the efficiency of your system by insulating the heating element or burner from the water. To prevent this, it is important to flush out the sediment regularly.

To flush out sediment from your water heater tank:

  1. Turn off the power supply or gas valve to the water heater.
  2. Attach a garden hose to the drain valve located near the bottom of the tank.
  3. Place the other end of the hose in a suitable drainage area or connect it to a floor drain.
  4. Open a hot water faucet in your home to allow air into the system.
  5. Open the drain valve on your water heater and let all the water flow out through the hose.
  6. Once all the water has drained, close the drain valve and remove any remaining sediment by briefly turning on and off cold-water supply to create turbulence inside the tank.
  7. Finally, refill your tank by opening up all hot-water faucets in your home until you have a steady flow of water.

Inspecting and replacing sacrificial anode rods as needed

Water heaters are equipped with sacrificial anode rods that help protect against corrosion by attracting corrosive elements in place of other metal components within your system. Over time, these anode rods deteriorate and need replacement.

To inspect and replace sacrificial anode rods:

  1. Turn off power supply or gas valve to your water heater.
  2. Locate where your anode rod is installed (usually found on top of or attached to your tank).
  3. Use a wrench to unscrew the anode rod from its position.
  4. Inspect the rod for signs of corrosion or significant deterioration.
  5. If the anode rod is heavily corroded, it is time for a replacement.
  6. Purchase a new anode rod that matches the specifications of your water heater model.
  7. Apply plumber’s tape to the threads of the new anode rod to ensure a tight seal.
  8. Screw in the new anode rod and tighten it securely.

Troubleshooting Common Water Heater Issues

Lack of Hot Water or Strange Noises

If you’re experiencing a lack of hot water or hearing strange noises coming from your water heater, there are a few troubleshooting steps you can take. First, check the pilot light. If it’s not lit, follow the manufacturer’s instructions to relight it. Make sure the thermostat is set to an appropriate temperature and adjust it if necessary. Strange noises could indicate sediment buildup in the tank, which can be resolved by flushing the tank to remove any debris.

Pilot Light, Thermostat, or Heating Elements

Issues with the pilot light, thermostat, or heating elements can also cause problems with your water heater. If the pilot light won’t stay lit after relighting it, there may be an issue with the thermocouple. This component detects whether the pilot light is on and allows gas flow to the burner. Replacing a faulty thermocouple can often solve this problem.

If you’re not getting enough hot water or if it’s too hot, check the thermostat settings first. Adjust them as needed and wait for some time to see if that resolves the issue. If not, there may be a problem with one of the heating elements in your electric water heater. In this case, you’ll need to turn off power to the unit and test each element for continuity using a multimeter.

Seeking Professional Assistance

While many common water heater issues can be resolved through troubleshooting steps at home, there are situations where professional assistance is necessary. For complex problems that require specialized knowledge or tools such as leaks in plumbing connections or malfunctioning valves, it’s best to call a licensed plumber.

If you’ve attempted troubleshooting steps but haven’t been successful in resolving the issue or if you’re uncomfortable working with gas lines or electrical components, it’s always safer to seek professional help rather than risk further damage or injury.

Remember, proper maintenance and regular inspections can help prevent many water heater issues. It’s recommended to have your water heater serviced annually by a professional to ensure it continues to function efficiently and safely.

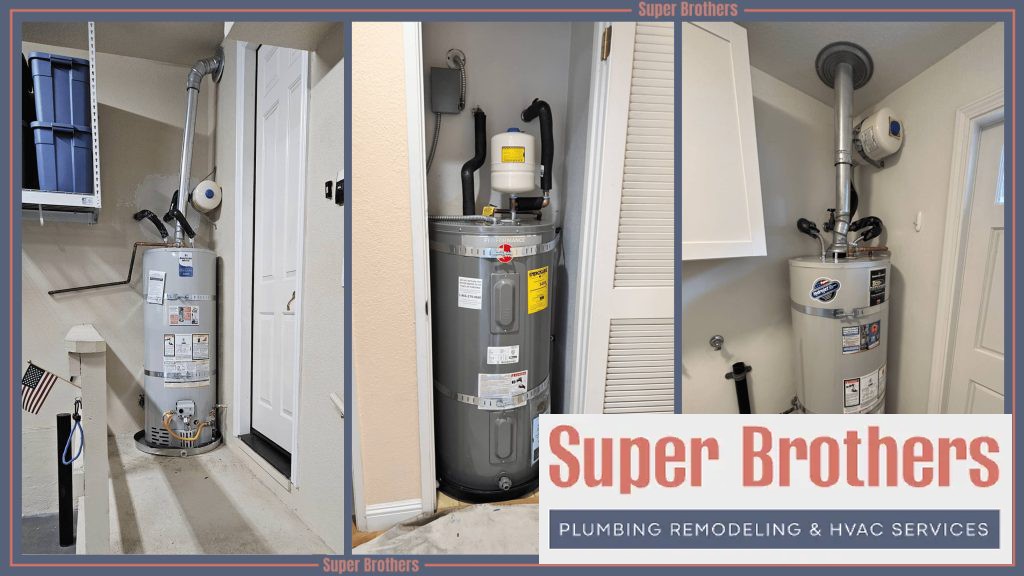

water heater different brands

Expert Maintenance and Installation Advice

Extending the Lifespan of Your Water Heater

To ensure your water heater lasts as long as possible, it’s crucial to follow some expert tips. Firstly, consider installing a water softener if you have hard water. Hard water contains minerals that can accumulate in your water heater and reduce its efficiency over time. Regularly flushing the tank can also help remove sediment buildup, which can lead to corrosion and reduced performance.

Another important maintenance task is checking the pressure relief valve annually. This valve helps release excess pressure from the tank, preventing potential explosions or leaks. Simply lift the lever on the valve to allow some water to flow out. If no water comes out or it continues to leak after releasing the lever, it may be time to replace the valve.

Annual Maintenance Recommendations

In addition to regular flushing and checking the pressure relief valve, there are a few other tasks you should include in your annual maintenance routine. Inspect all connections for any signs of leaks or corrosion and tighten them if necessary. Check for any unusual noises coming from the tank, as this could indicate a problem with sediment or mineral buildup.

It’s also essential to test the temperature and pressure (T&P) relief valve annually. This ensures that it is functioning correctly and will activate when needed. To do this, place a bucket under the discharge pipe connected to the T&P valve and lift its lever for a few seconds while monitoring if hot water flows into the bucket.

Choosing the Right Size and Type of Water Heater

Selecting an appropriately sized water heater is crucial for meeting your household’s hot water demands efficiently. Consider factors such as family size, usage patterns, available space, and energy source options when determining what size will work best for you.

If you’re considering replacing your current unit or installing a new one, explore different types of water heaters available on the market. Gas water heaters are commonly used and can provide hot water even during power outages. On the other hand, electric tankless water heaters offer on-demand hot water and take up less space. Evaluate the pros and cons of each type to make an informed decision.

Remember that it’s always best to consult with a licensed contractor when installing or replacing a water heater. They have the expertise to ensure proper installation, including securing all connections tightly with wrenches and following local building codes.

Conclusion

Congratulations! You’ve now learned how to install a water heater expansion tank and connect a gas water heater. By following the step-by-step instructions and expert advice provided in this article, you can ensure a safe and efficient installation process for your home. Remember to always prioritize safety by turning off the gas and water supply before starting any work.

Now that you have the knowledge and tools to install and maintain your water heater system, it’s time to take action. Don’t let a faulty or inefficient water heater disrupt your daily life. Put your newfound skills to use and enjoy the benefits of a properly functioning water heater.

So go ahead, tackle that installation with confidence, and enjoy hot showers and reliable hot water whenever you need it. Cheers to a successful water heater installation journey!

Frequently Asked Questions

FAQ

How do I install a gas water heater?

To install a gas water heater, start by turning off the gas supply and disconnecting the old unit. Then, connect the new water heater to the gas line and ensure all connections are secure. Finally, test for leaks and turn on the gas supply. Always follow manufacturer instructions and consider hiring a professional if you’re unsure.

Can I install an electric tankless water heater myself?

While it’s possible to install an electric tankless water heater yourself, it’s recommended to hire a licensed professional for safety and optimal performance. A professional will ensure proper electrical connections, adequate power supply, and compliance with local building codes.

Why should I install a water heater expansion tank?

Installing a water heater expansion tank helps protect your plumbing system from excessive pressure caused by thermal expansion. When heated water expands within your closed plumbing system, the expansion tank provides space for this increased volume, reducing stress on pipes, valves, and other components.

What are the benefits of installing an electric tankless water heater for your plumbing systems? Electric tankless water heaters are a great option for homeowners who want to save energy and money. Unlike traditional water heaters, they do not require a storage tank, which means they take up less space and are more efficient. Additionally, electric tankless water heaters provide hot water on demand, so you never have to worry about running out. They are also safer than gas-powered heaters because there is no risk of a gas pipe leaking or causing an explosion. Another benefit is that

Electric tankless water heaters offer several advantages. They provide endless hot water on demand, saving energy by heating only when needed. They also take up less space compared to traditional tanks and have longer lifespans. They eliminate standby heat loss and can be installed closer to point-of-use locations.

Do I need an expansion tank for my electric tankless water heater? What about for a gas tankless water heater? If you have a gas pipe connected to your water heater, it is important to consult with professional plumbers to determine if an expansion tank is necessary. This is because the gas supply line may require additional support, such as a tee, to accommodate the expansion and contraction of the water heater.

In most cases, you won’t need an expansion tank for an electric tankless water heater since they don’t store large amounts of heated water like traditional tanks do. However, it’s always best to consult with a plumbing professional who can assess your specific setup and advise if an expansion tank is necessary.
